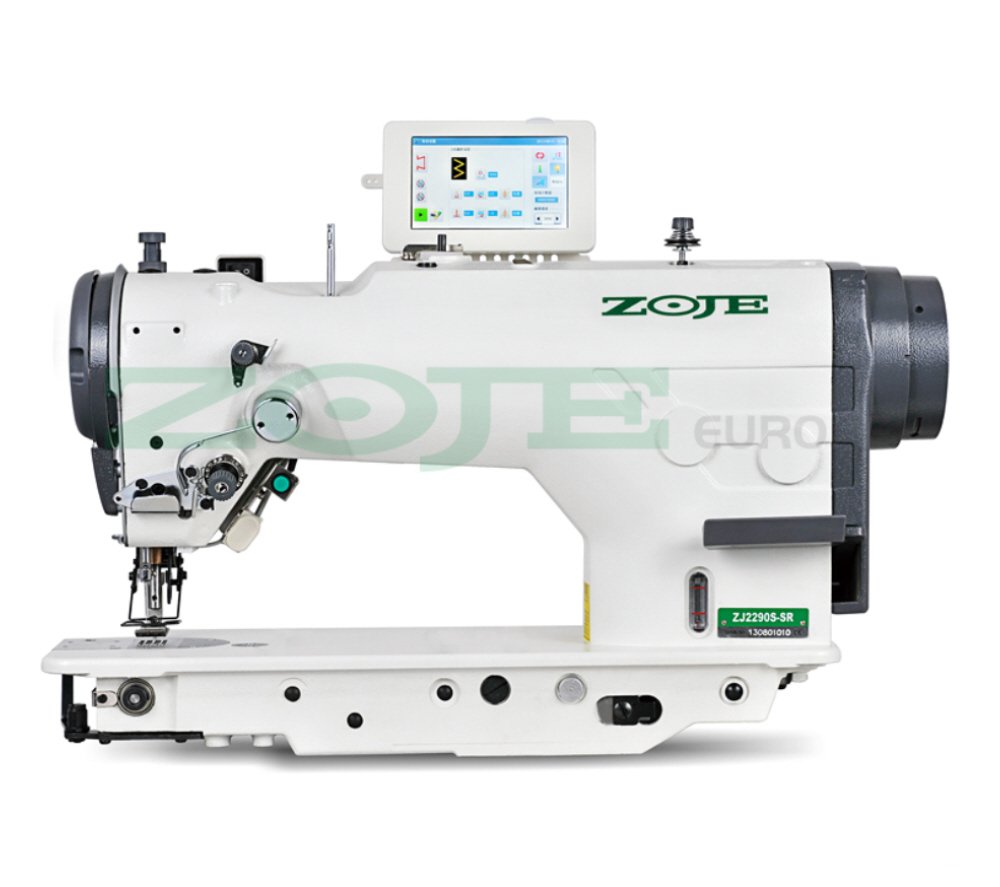

Electronic programmable zigzag machine with automatic function thread trimmer, reverse feeding, foot lifter, needle positioning, wiper. Equipped with energy saving AC Servo Motor and with stepping motors for driving needle bar and feed dog. LED Lamp for lighting of working field in standard.

For sewing light and medium materials. Perfect for straight stitch, standard zigzag, 2 step, scallop and other decorative stitches. Provides 20 basic patterns and 94 decorative patterns stored in memory and enables its configuration. Machine equipped with software for stitch programming on the touch control panel and for storing them in memor (up to 500 patterns). Panel is equipped with USB port for memory cards and easy transfer of designed patterns.

Possibility to perform a mirror image of selected patterns (e.g Scallop stitches)

Large clearance between needle bar and the machine’s arm (increased to 29cm) ensurers easy and convenient material handling.

Bottom feed, max zigzag length 5mm, max zigzag width 8mm or 10mm for 3 step stitches, max sewing speed 5,000 spm, automatic foot lifter up to 6mm, central lubrication.

For this machine we recommend Schmetz needle system 135×5 or 135×5 SERV7 with correct needle points, depending on the fabric.
